结构综述

节点 Node​

class Node {
    int val;
    Node next;

    ...
}

链表 Linked List​

class LinkedList {
    Node head;
    Node tail;
    int size;

    ...
}

堆栈 Stack​

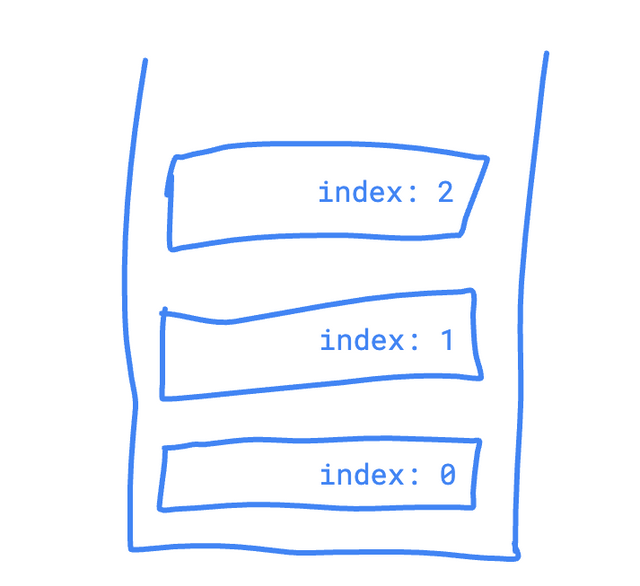

由数组实现​

数组 + top

class Stack {
    int capacity;
    int top;
    int[] array;

    ...
}

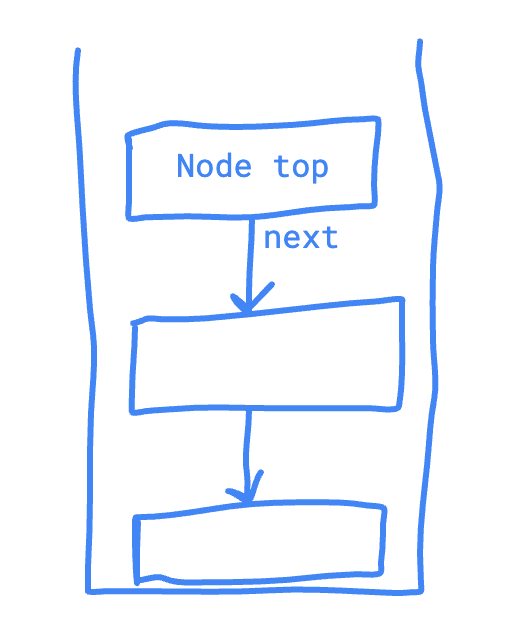

由链表实现​

class Stack {
    Node top;

    ...
}

队列 Queue​

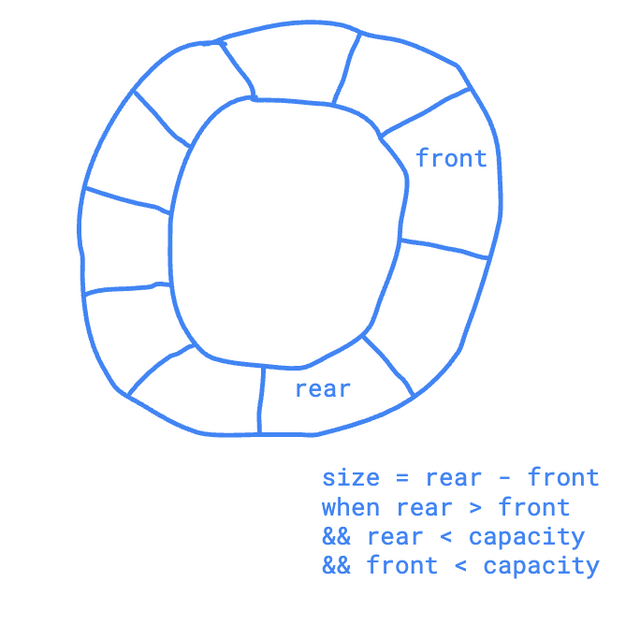

由循环数组实现​

class Queue {
    int front, rear, size;
    int capacity;
    int[] array;

    ...
}

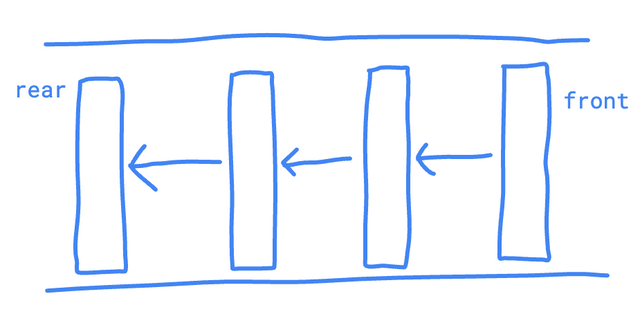

由链表实现​

class Queue {
    Node Front;
    Node rear;

    ...
}

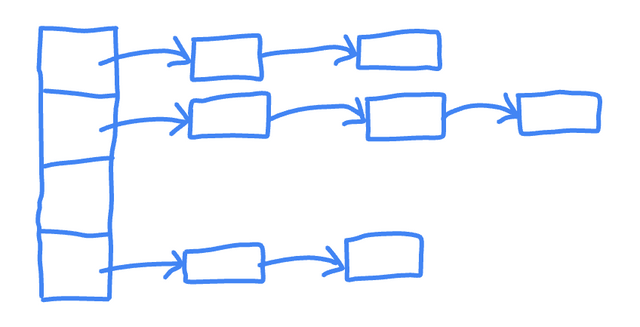

哈希表 HashMap​

class HashNode {
    String key;
    Integer value;
    HashNode<String, Integer> next;
}

class HashMap {
    private ArrayList<HashNode<String, Integer>> bucketArray;
    private int numBuckets;
    private int size;

    public HashMap() {
        bucketArray = newArrayList<>();
        numBuckets = 10;
        size = 0;
        for (int i = 0; i < numBuckets; i++) {
            bucketArray.add(null);
        }
    }

    ...
}

树 Tree​

节点​

class TreeNode {
    TreeNode left;
    TreeNode right;
    int value;

    ...
}

排序二叉树 Binary Search Tree​

class BTS {
    private TreeNode root;

    ...
}

优先队列 PriorityQueue​

节点​

class PriorityNode {
    int value;
    int priority;
    PriorityNode next;

    ...
}

由链表实现​

class PriorityQueue {
    PriorityNode head;

    ...
}

堆 Heap​

由数组实现​

class MaxHeap {
    int capacity;
    int size;
    int[]  array;

    ...
}

图 Graph​

由矩阵实现​

int[][] matrix;

由链表()实现​

class ListGraph {
    // ArrayList<ArrayList<Integer>> 在概念上可以被看作是一个链表的链表，实际上它更类似于数组的数组，即一个动态重新分配的数组。
    ArrayList<ArrayList<Integer>> graphs;

    public ListGraph(int v) {
        graphs = newArrayList<>(v);
        for (int i=0; i<v; i++) {
            graphs.add(newArrayList<>());
        }
    })
}
